Micro hydro turbine generator automation control panel- Grid connection control panel

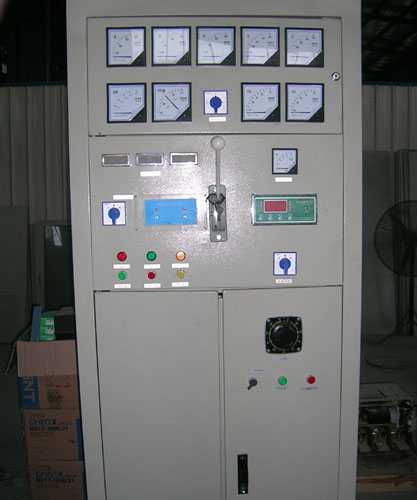

HS Dynamic Energy offer client with three in one control panel(synchronization, protection and excitation ) and ten in one control panel for option, here we explain ten in one control panel, this system hardware and the software use the modulation and structuring design. It’s convenient for the expansion of the equipment and beneficial for added functions and system expanding scale. The system includes the following functions:

  1. automatically open & stop based on water level in surge tank or forebay/reservoir;(water level sensor is needed)
  2. Emergency stop such as grid load breaking;
  3. automatically adjust the frequency and the power;
  4. automatically increase excitation and decrease excitation;
  5. automatically synchronizing with the local grid;
  6. Generator protection function (over current, over load, over voltage, low voltage, over temperature protection, over-speed, low frequency and so on );
  7. Generator automatic measurement function (three-phase current, three-phase voltage, active power, reactive power, frequency, cosψ, active electric degree, reactive electric degree, generator temperature and so on);
  8. Control the hydro turbine generator’s output based on the water level of the surge tank.(water level sensor is needed)
  9. Reserve conventional manual operation and regular instruments;
  10. A microcomputer integrated automatic control screen equipped with computer can form the network, complete the power station’s centralized management, centralized control, data record, inquiries’ printing, multiple hydropower stations can accept the remote control and scheduling of the control center.
